Led OT Light

Name: Led OT Light
Brand: Melody Medisystem
Price: 66000.0 INR
Availability: InStock

Price 66000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Led OT Light Specification

Properties
Shadowless, low heat emission, long life, energy efficient

Treatment Type
Surgical Operations

Shape
PENTAGON

Phase
Single Phase

Function
Shadowless illumination for surgical field

Product Type
LED OT Light

Use
OPRATION THEATER

Accuracy
High illumination accuracy, >95% CRI (Color Rendering Index)

Frequency
50/60 Hz

Temperature Range
Operating temperature 5C to 40C

Material
stainless steel

Application
Operation Theater illumination

Height
Adjustable ceiling mount, typical range 1.5m to 2.2m

Color Code
White and Blue - Multi-block

Suitable For
Hospital OT, minor & major surgical procedures

Humidity Range
10% to 90% RH, non-condensing

Dimension (L*W*H)
700 mm x 700 mm x 300 mm (Typical for ceiling OT lights)

Weight
Approx. 14-20 kg

Automation Grade
Manual arm adjustment

Power
Total power consumption approx. 60-90W

Display Type
manual

Voltage
220V AC

Power Source
Electric (Ceiling Mounted)

Display
No digital display

Illumination Intensity
Up to 120,000 Lux at 1 m

Sterilizable Handle
Yes

Light Field Diameter
160 to 220 mm (adjustable)

Focusing
Adjustable focus

Number of LEDs
80 LEDs (20 per petal x 4 petals)

Mounting Type
Ceiling Mount

Backup Battery
Optional

Color Temperature
4000-5000 K (Daylight White)

Reflection
Minimizes shadow and glare

LED Lifetime
> 50,000 hours

Led OT Light Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Led OT Light

1. LED OT Light Features
Melody Medisystems "Melody Series" is marketed as their 3rd generation of surgical lighting. Key technical highlights include:

High Intensity: Their domes typically offer brightness ranging from 160,000 to 180,000 Lux, ensuring deep cavity visibility.

Shadowless Technology: Designed with multiple LED clusters and advanced optics to eliminate shadows caused by surgical teams.

Color Control: * CRI (Color Rendering Index): Generally around 9395 Ra, providing true-to-life tissue colors.

Color Temperature: Adjustable between 3,800K and 4,850K, allowing surgeons to optimize contrast.

User Interface: Features touch-sensitive control panels and often includes a remote control for intensity and pattern adjustments.

Thermal Management: Built with efficient heat sinks to maintain a "cool light" environment, preventing tissue desiccation.

Advanced Illumination for Surgical Precision

This OT light delivers up to 120,000 Lux of daylight-white illumination, greatly enhancing visibility in the operating field. With adjustable focus and a sterilizable handle, the light adapts seamlessly to different procedures and maintains stringent hygiene standards, supporting consistent surgical outcomes.

Ergonomic and Durable Design

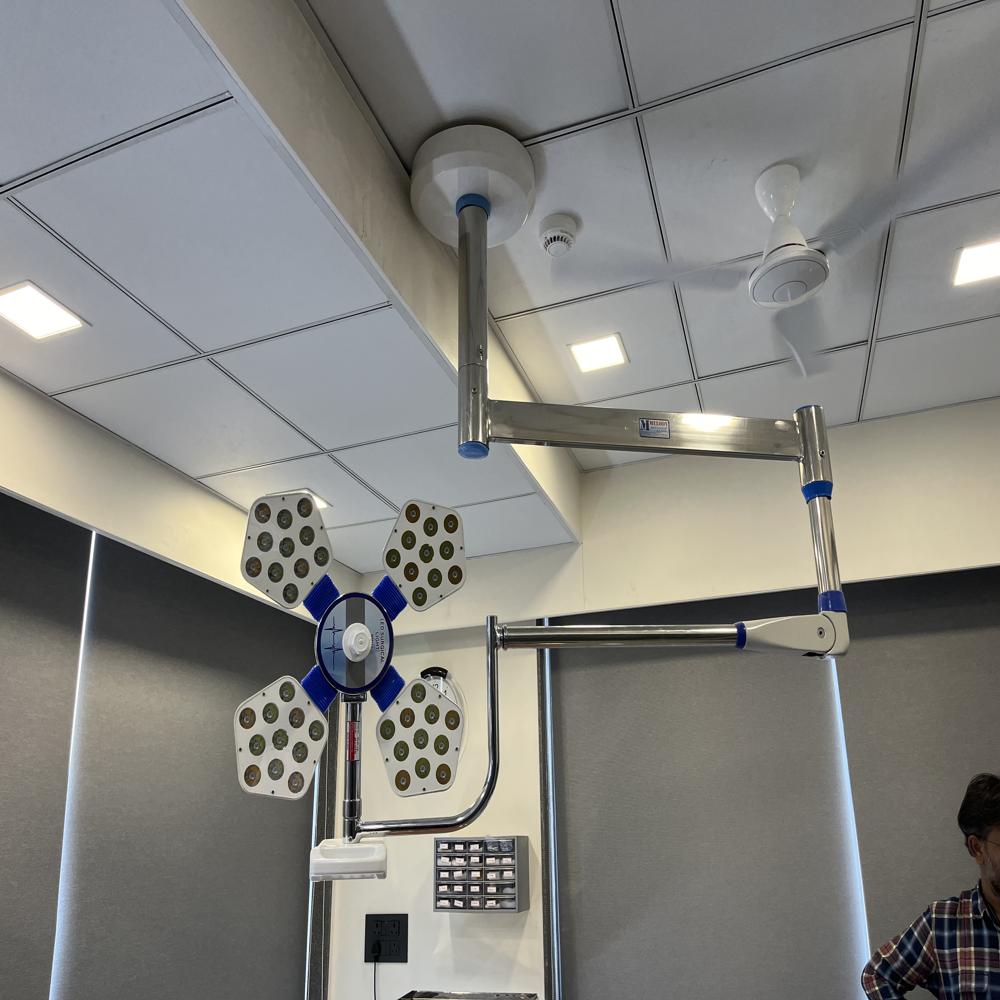

Constructed from stainless steel with a pentagon-shaped four-petal structure, this light is built for longevity and reliability. The ceiling-mounted system reduces shadow and glare, features manual arm adjustment, and offers a lightweight, corrosion-resistant housing ideally suited for hospital environments.

Energy Efficiency and Versatility

With low heat emission and energy requirements of just 60-90W, this OT light is cost-effective and safe for extended use. The high CRI ensures true color perception, and optional battery backup provides operational security during power fluctuations, making it suitable for both minor and major surgical operations.

FAQ's of Led OT Light:

Q: How does the LED OT Light minimize shadows during surgery?

A: The OT Light employs a pentagon shape with 80 LEDs distributed over four petals, which ensures overlapping light beams to reduce shadows and glare. This shadowless illumination enhances the surgeon's visibility, especially in deep cavities.

Q: What benefits does the adjustable focus feature provide?

A: Adjustable focus allows the surgical team to tailor the illumination precisely to the size and depth of the surgical field, ensuring uniform lighting for different procedures without producing excessive heat or glare.

Q: When should the sterilizable handle be used?

A: The sterilizable handle should be utilized whenever adjustments are needed during surgery. It can be removed and autoclaved after each procedure, ensuring a sterile environment and minimizing the risk of contamination.

Q: Where is the ideal installation location for this OT light?

A: This light is designed for ceiling mounting within operation theaters. Adjustable mounting allows for optimal positioning over the surgical table, typically at a height range between 1.5 m and 2.2 m, suiting different room sizes and applications.

Q: What is the process for adjusting illumination intensity or focus?

A: Adjustments are made manually via the arm and control handle. The surgeon or assistant can fine-tune the light field diameter (160-220 mm) and focus to achieve the required brightness and coverage during a procedure.

Q: How is the long lifespan of the OT Light advantageous in clinical settings?

A: With a lifespan exceeding 50,000 hours, the LEDs require minimal replacements, reducing maintenance costs and downtime. This ensures dependable operation for years, supporting continuous patient care.
